Addon:HeatmapWebReport

This is a Third-party Addon.

Please use carefully on data that is backed up, and help make it better by reporting any comments or problems to the author, or issues to the bug tracker
Unless otherwise stated on this page, you can download this addon by following these instructions.
Please note that some Addons have prerequisites that need to be installed before they can be used.
This Addon/Plugin system is controlled by the Plugin Manager.
An Addons Offline Manual is available for review.

Heatmap report (Stamen Design Terrain map tiles)

Heatmap is a web report which creates an interactive map containing a heatmap generated from Gramps event place data.

Usage

Once this Report addon has been installed, Heatmap web pages can be generated from the Graphical User Interface or the Book interface. Report only looks for Places found within a subset of the Events related to a group of People.

The webpage contains an embedded list of GPS coordinates for places with the number of Events occurring at each place. The list is set up for output to the Heatmapping overlay feature of a selected Web map service.

The Graphical User Interface

Select Menu Reports ▼ Web Pages ▶ Heatmap...

The `General` tab

Heatmap Options tab

This tab allows the following options to be selected:

Filter: defaults to restrict Person results to match the "Ancestors of <selected person>" filter.
Other filters include the "Descendants of <selected person>" or any of the custom filter for the Person category.
Person: Sets the <selected person> for the filter.
This defaults to the currently Active Person.

Heatmap Select Person dialog
Select Existing button allows the <selected person> to be re-designated.
The Share list is initially filtered to the current Active Person, Home Person and any bookmarked persons.
Show all checkbox allows choosing from an unfiltered People list.

Map tiles: Changes the Map Service providing the HeatMap overlay processing and the appearance of the map backdrop.

Map Service selections include:
- OpenStreetMap
- Stamen Terrain
- Stamen Toner
- Stamen Watercolor
- CartoDB Positron
- CartoDB DarkMatter
Filepath: The file directory where the Web Page file should be saved.
File name: The file name. (Only allows letters A-Z, a-z, numbers 0-9 and the characters space, underline and hyphen)

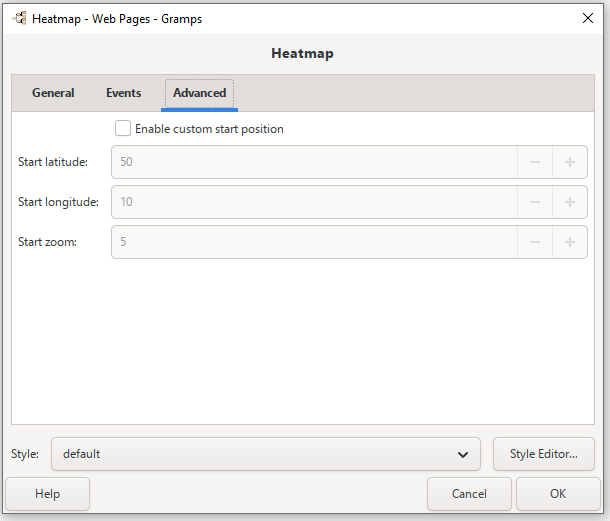

The `Advanced` tab

Enable custom start position If selected, the map centers on a specific location and zoom scale.
Start latitude: +90 (north pole) to -90 (south pole). The central latitude for a displayed map.
Start longitude: -180 to 0 for the western hemisphere and 0 to +180 for the eastern hemisphere. The central longitude for a displayed map.
Start zoom: 1 to 18 [8 default]. 1 shows the entire planet surface in about 5 inches square.

The `Limits` tab

Enable map limits If selected, the map is restricted to a range of zoom scales and a viewing window.
Min. zoom: 1 to 18 [1 default]. Limits the zoom out scale that a map rendering will accept.
Max. zoom: 1 to 18 [14 default]. Limits the zoom in scale that a map rendering will accept.
Upper left corner latitude: +90 (north pole) to -90 (south pole). The upper latitudinal limit for scrolling a displayed map.
Upper left corner longitude: -180 to 0 for the western hemisphere and 0 to +180 for the eastern hemisphere. The leftmost longitudinal limit for scrolling a displayed map.
Lower right corner latitude: +90 (north pole) to -90 (south pole). The lower latitudinal limit for scrolling a displayed map.
Lower right corner longitude: -180 to 0 for the western hemisphere and 0 to +180 for the eastern hemisphere. The rightmost longitudinal limit for scrolling a displayed map.
Render custom map limit border If selected, a semi-transparent blue polygon illustrates the limits of the view window box. (Shows as a rectangle for standard Mercator Projection of the globe.)
